Photoshop Quick Tips: Isolation Mode by Simon Abrams

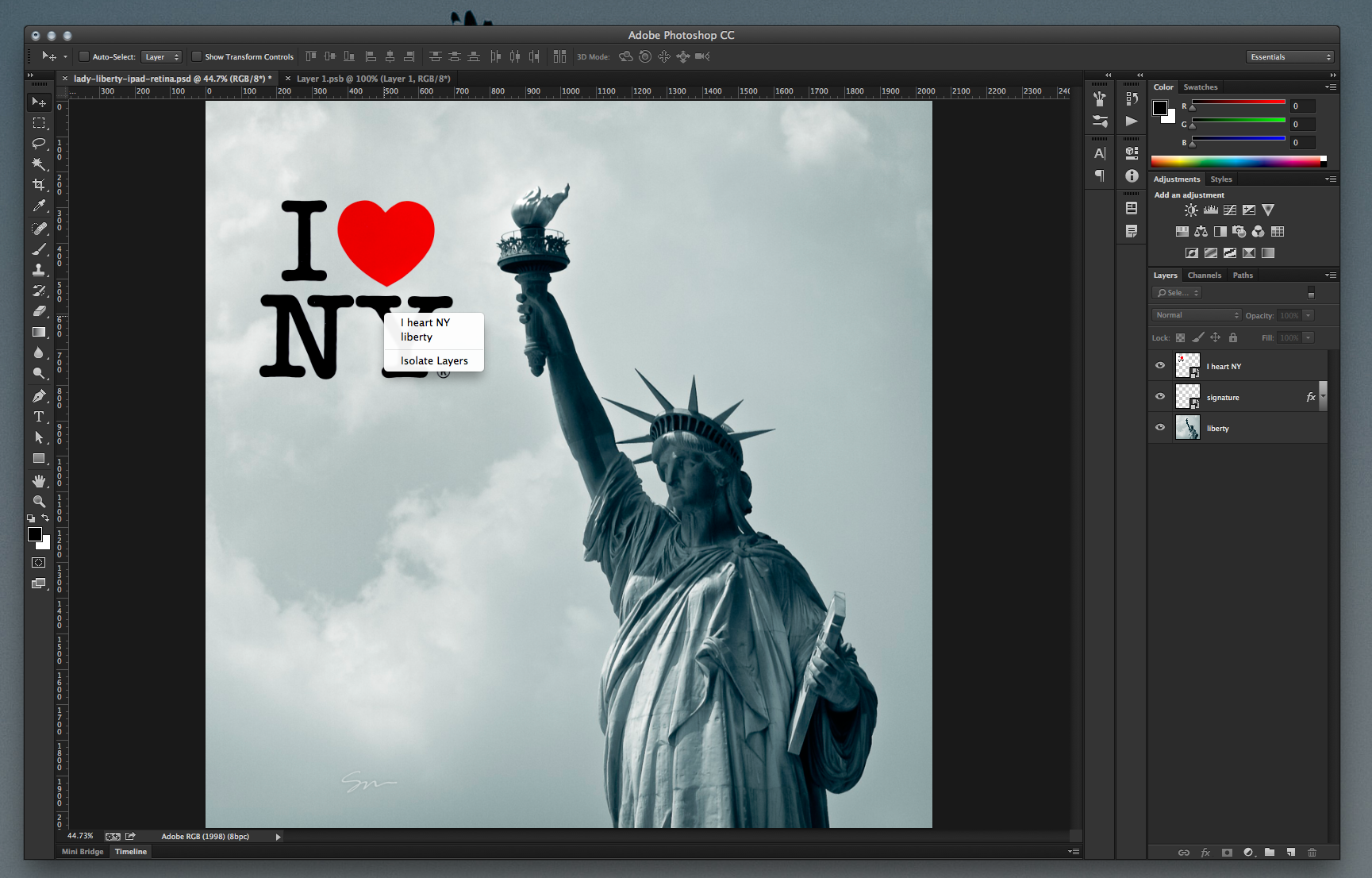

Right-click on the canvas to view selected layers in Isolation Mode

One of the new features in Photoshop CC that might have slipped by you is a little gem that can help make your life easier when working on complex .psd files with tons of layers. Isolation Mode unclutters your Layers panel by only displaying the layers you're currently working on, and temporarily hiding everything else.

To enter Isolation Mode, with the Move tool active (press the V key on the keyboard), select the layer or layers you want to focus on, either by shift- or cmd-clicking on them in the Layers Panel, or by command-dragging (ctrl-drag, if you're on Windows) a selection around them on the canvas. With your cursor over the canvas, right-click and choose Isolation Mode from the resulting contextual menu.

Alternately, with your layers selected, you can click on the Filter menu at the very top of the Layers panel and choose Selected as the filter type.

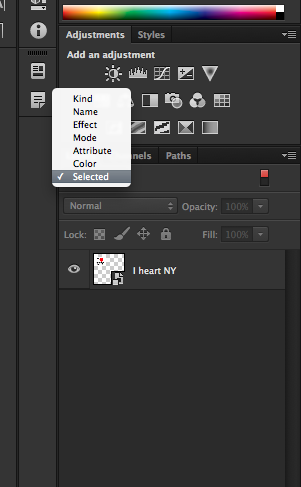

Another way to enter Isolation Mode is to use the Layers Panel's Filter pull-down menu to only show selected layers

Right-click in the Layers panel to release a layer from Isolation Mode.

To remove a layer from the isolated set, right-click it in the Layers panel and choose Release from Isolation (if you don't see that option in your contextual menu, make sure your Move tool is active).

To add another layer to the isolated set, hover over it on the canvas, right-click, and select the layer.

Finally, to exit Isolation Mode entirely, you can always clear the Layers Panel's filters by clicking on the Filtering On/Off switch (it's the little guy at the top-right of the panel that turns red when filtering is on).

This is one of those great features that you probably didn't realize you needed, but now that it's here, you'll wonder how you ever got by without it.

Photoshop CC Favorite Features: Editable Rounded Rectangles by Simon Abrams

Editable Rounded Rectangles in Photoshop CC

This is the first in a series of posts I'm going to be doing about my favorite new features in Photoshop CC. For the uninitiated, CC, or Creative Cloud, is the new designation that Adobe is giving their suite of applications as they move away from the "boxed" retail model of the Creative Suite to delivering their software via digital download.

Today, I'm focusing on a new feature that I, and many, many others, have been begging for for ages: editable rounded rectangles.

It might sound like a small thing, but it really is a big time-saver. In previous versions of Photoshop, you'd create a rounded rectangle Shape layer and whatever settings you used when you created the shape were immediately baked in the second you released the mouse. If you had to replicate that shape elsewhere (either in CSS or maybe as a vector shape in Flash), there was no easy way to figure out what the radius of that shape was without a whole bunch of trial and error, especially if you weren't the original designer that worked on the file. Now in Photoshop CC, you can simply click on the rounded rectangle vector shape and you'll notice that the Properties panel is now populated with all the editable properties of that shape (or Live Shape, as it's labeled in the panel).

The Live Shape Properties Panel in Photoshop CC

Not only do the radii of the rounded rectangle remain editable (or live) after the fact, you can independently edit the radius of each corner, allowing you to create irregular shapes like the ones shown in the screenshot above, without having to edit the shape's vector paths using the pen tool, or by combining shapes with boolean operations, as you would have had to do in previous editions of Photoshop.

I'm thrilled with this new feature - it definitely goes a long way towards solving at least one of the issues that interface and icon designers have had with creating and resizing HiDPI (aka Retina) graphics, and is a big part of Adobe's continuing enhancement of Photoshop's vector graphics capabilities.

Stay tuned for more posts highlighting additional new features in Photoshop CC.
